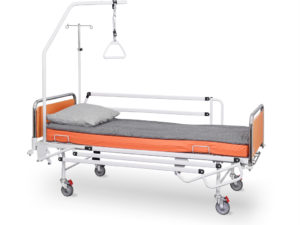

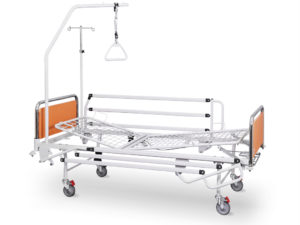

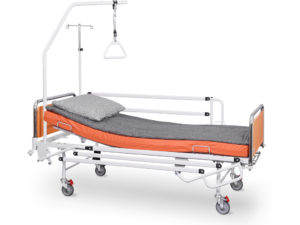

A4/G rehabilitation bed
The A-4/G rehabilitation bed is intended for treatment and care at hospital and rehabilitation units, in nursing homes and other healthcare facilitiesa
- Description
- Size Guide
Description
Description
- two-segment mattress frame
- gas-spring adjustment of back segment
- manual lower leg segment adjustment with a ratchet mechanism
- fixed mattress frame height
- mattress frame segments with permanently fixed metal mesh (optional removable mesh)
- metal head and foot boards, powder coated
- optional chrome finish
- filling – laminated board
- four running wheels, two of which have a locking mechanism for movement and turning, with an optional wheel for directional movement
- central wheel lock (optional)
- pull-out shelf for bed sheets (option)
- sleeves for mounting a pull up rail or drip rack
- bumper disks
Additional equipment
- side rails folded along the mattress frame
- lowered side rails (optionally chrome plated)
- universal side rails
- anti-bedsore mattress S.CH
- hospital mattress SI .CH
- drip rack with 2 or 4 hooks
- pull-up rail
- urine pot mount
- bedpan mount
- removable mesh
- HPL mattress frame
- pull-out shelf for bed sheets
- control panel
- control box
- frame for patient file with hidden personal information
- double pull-up frame
- central wheel lock
- oxygen tank basket
Technical data
- Total length 2110mm ± 10mm
- Total width 985mm±10mm
- Mattress frame width 860mm±10mm
- Mattress frame length 2000mm ±10mm
- Height 550mm ±5mm
- Back segment adjustment 0-70° ±5°
- Leg segment adjustment 0-40° ±5°
Colours
- Metal colours
- RAL 7035
- RAL 9006
- RAL 9007
- RAL 1015
- RAL 5024
- RAL 9005
- RAL 9016
- RAL 6018
- RAL 1003
- RAL 3002
- Laminated board
- Mountain alder
- Bavaria beech
- Cream
- Water blue
- Lime
- Milano Yellow
- Orange
- White
- Rotomulding
- Gray
- Blue
- Beige
- HPL
- Gray
- Bavaria beech
- White
- Water Blue
- Cream
