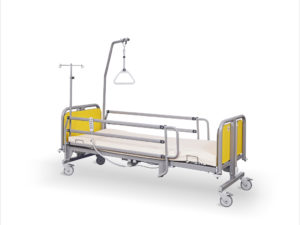

Frater
PANEL 30

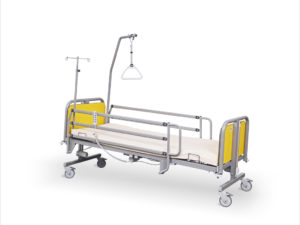

PANEL 31

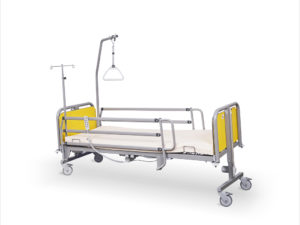

PANEL 32

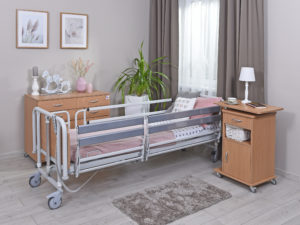

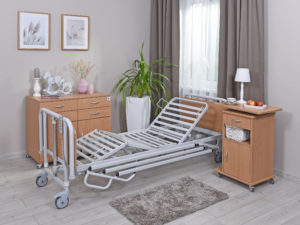

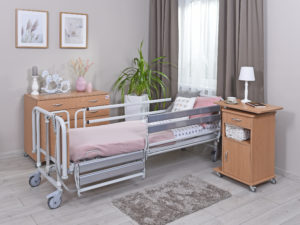

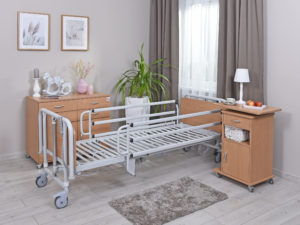

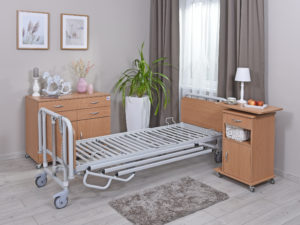

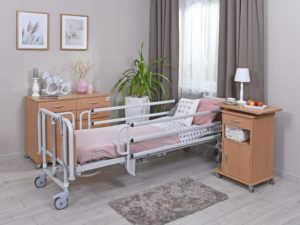

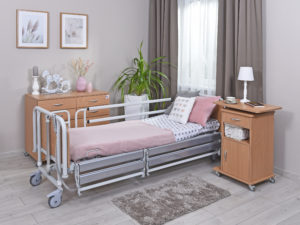

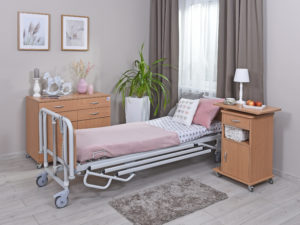

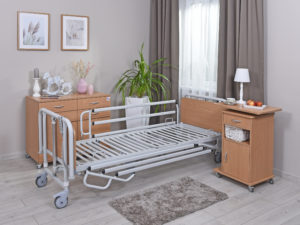

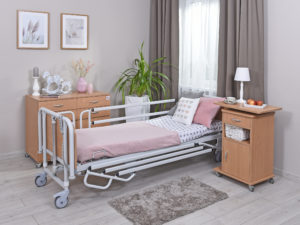

FRATER rehabilitation and care bed

The Frater rehabilitation bed is intended for treatment and care at hospital and rehabilitation units, in nursing homes and other healthcare facilities

  • Description
  • Size Guide

Description

Description

  • four-segment mattress frame with the adjustment of segments with electrical actuators controlled with a remote control

  • electrical adjustment of height and individual segments by a wired control

  • lower leg segment adjustment with a ratchet mechanism

  • four running wheels with individual locking mechanisms for movement and turning, one wheel for straight movement (option)

  • mattress frame segments with permanently fixed metal mesh (optional removable mesh)

  • head and foot boards filled with laminated or HPL board (option)

  • autocontour

  • sleeves for mounting a pull up rail or drip rack

  • bumper disks

Additional equipment

  • side rails folded along the mattress frame
  • lowered side rails (optionally chrome plated)
  • universal side rails
  • anti-bedsore mattress S.CH
  • hospital mattress SI .CH
  • drip rack with 2 or 4 hooks
  • pull-up rail
  • urine pot mount
  • bedpan mount
  • removable mesh
  • HPL mattress frame
  • pull-out shelf for bed sheets
  • control panel
  • control box
  • frame for patient file with hidden personal information
  • double pull-up frame
  • central wheel lock
  • oxygen tank basket

Technical data

  • Total width: 920mm ±10

  • Total length: 2140mm ±10

  • Mattress frame dimensions 2020x900mm ±10

  • Height adjustment 400-800mm ±5

  • Backrest segment adjustment 0-70° ±5°

  • Upper leg segment adjustment 0-42° ±5°

  • Lower leg segment adjustment 0-22°±5°

  • Trendelenburg and reverse Trendelenburg positions 0°-12° ±1°

  • Power ~ 230V, 50Hz

  • Protection class II type B

Colours

  • Metal colours
  • RAL 7035
  • RAL 9006
  • RAL 9007
  • RAL 1015
  • RAL 5024
  • RAL 9005
  • RAL 9016
  • RAL 6018
  • RAL 1003
  • RAL 3002
  • Laminated board
  • Mountain alder
  • Bavaria beech
  • Cream
  • Water blue
  • Lime
  • Milano Yellow
  • Orange
  • White
  • Rotomulding
  • Gray
  • Blue
  • Beige



  • HPL
  • Gray
  • Bavaria beech
  • White
  • Water Blue
  • Cream
